Customized Air Filters ( efficiency and size )
Efficiency: H13 99.95%, H14 99.995%, U15 99.9995% EN:1822
Filter depth: 15-90mm
Filter media: Synthetic fiber
Frame material: Metal or paper
Separator: Hot melt
Customized size&efficiency: Available
Design: Panel
Max Operating Temperature: 175˚F (79˚C)
Max Operating Humidity: 80%
INTRODUCTION
- Sometimes we may facing the problem that air filters size or construction is strange, uncommon; we cannot buy the filters in market. In order to solve the problem, EawayFilters provide customized size and OEM service for the air filters. And we can make special construction according to the requirement.
- For commercial or industrial application, we use glass fiber media, metal or plastic frame for the customized air filters.

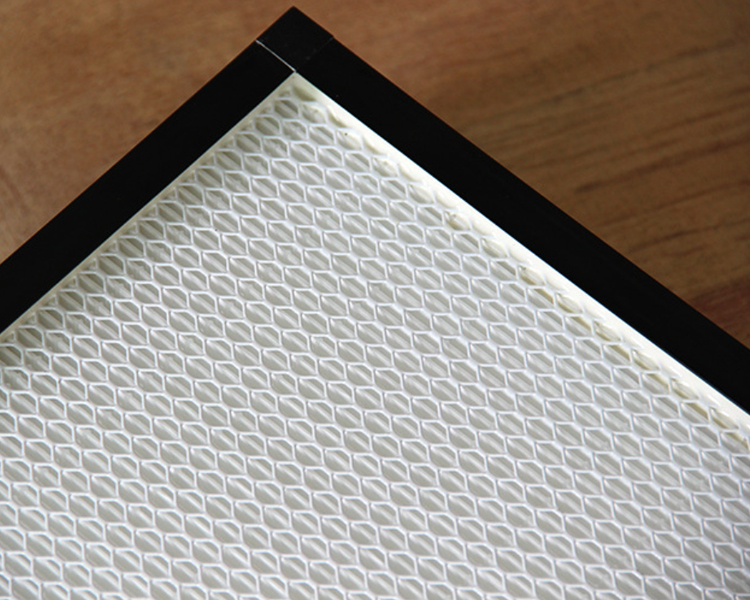

- For mini pleated HEPA filters, the thickness for aluminum alloy frame is 46mm, 50mm, 69mm, 80mm, 96mm, 117mm, 120mm, 150mm; other thickness is not available at the present. The length and width of the frame is any size available;
- If you want to order different thickness, we can use plastic frame or galvanized steel frame, the plastic frame should be molded;
- The HEPA air filters used for air purifier also could be customized and OEM, it`s polyester filter media and cardboard paper frame; thickness between 10mm to 80mm available;
- Length and width can be any size.
- The HEPA filters can combined with carbon particle filters and anti-bacteria, or pre filters to become multiply function air filters.
- Anyway, we can offer customized OEM service for any air filters, from pre filters, pocket filters, HEPA filters, FFU and so on, the EawayFilters got R&D and QC department; we have many experience for making the customized air filters, we will be your best partner.
SPECIAL SERVICE
We are the manufacturer and supplier for air purifier HEPA filter, at the same time, OEM and ODM service, LOGO printing is no problem. Also, we have a R&D department that can help clients to research their products, something like the construction design for HEPA filters and air flow rate and pressure drop test and so on.
Specifications and Details
| Efficiency | H13 99.95%, H14 99.995%, U15 99.9995% EN:1822 |
|---|---|
| Filter depth | 15-90mm |
| Filter media | Synthetic fiber |
| Frame material | Metal or paper |
| Separator | Hot melt |
| Customized size&efficiency | Available |
| Design | Panel |
| Max Operating Temperature | 175˚F (79˚C) |
| Max Operating Humidity | 80% |
